Description
Manufactured under design patent# US D572,856 S

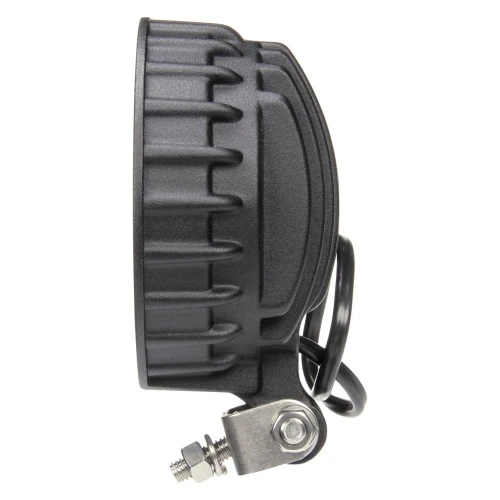

Rugged all purpose work lamp
General purpose "Work" pattern
LED light is whiter and brighter than comparable incandescent lamps
LEDs have no filament, therefore are extremely resistant to shock and vibration
81360/81374/81365-Operates at full brightness between 85v and 16v
81240/81270/81245-Operates at full brightness between 21v and 34v
81360/81374/81365-Overvoltage protection @ 17v-18v
81240/81270/81245-Overvoltage protection @ 34v-36v
LEDs have less current draw, resulting in increased battery and alternator life while allowing more power for other vehicle requirements
Available in durable black, white or chrome powder coated housings
Includes stainless steel mounting hardware
Mounts on one 5/16"-18 stud
5 year limited warranty
| Lighting Technology | LED |
|---|---|
| Number of Diodes/Bulbs | 6 |
| Lens Color | Clear |
| Lens Shape | Round |
| Lens Material | Polycarbonate |
| Common Size | 4" |
| Total Height In INH | 4.18 |
| Total Width In INH | 4.18 |
| Total Depth In INH | 2.47 |
| Total Height In MMT | 106.17 mm |
| Total Width In MMT | 106.17 |
| Total Depth In MMT | 62.74 |
| Mount Type | Stud |
| Housing Material | Die-Cast Aluminum |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Number of Wires | 2 |
| Voltage (VLT) | 45229 |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Work Lights |
