Description

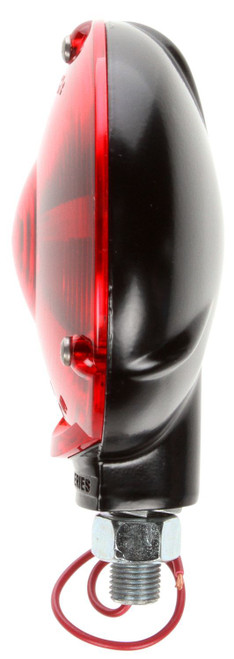

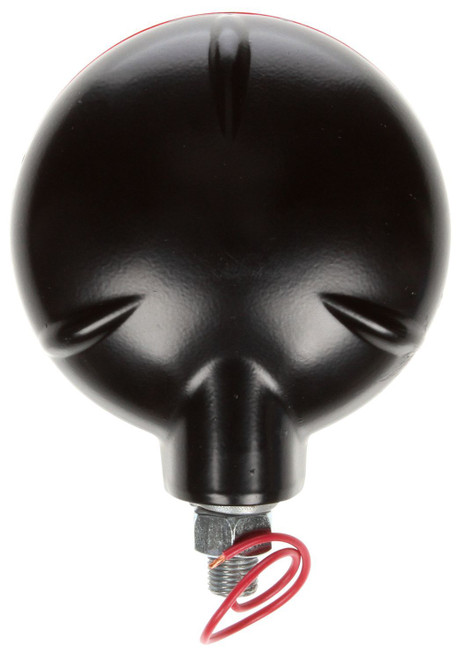

Signal-Stat, Incandescent, 4", Round, Red, 1 Diode, 1 Stud Mount, Stripped End, Pedestal Light
For applications with vehicle width under 80" wide
One wire, signal lamp
LED Upgrade options available #2751, 2751A and 2750
| Lighting Technology | Incandescent |
|---|---|
| Number of Diodes/Bulbs | 1 |
| Lens Color | Red |
| Lens Shape | Round |
| Lens Material | Acrylic |

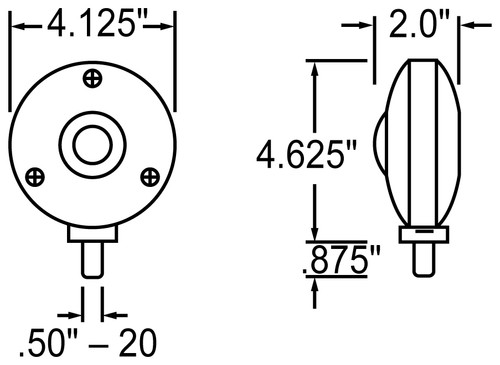

| Lens Height_INH | 4.13 in |
| Lens Width_INH | 4.13 in |
| Common Size | 4" |
| Total Height In INH | 4.13 |
| Total Width In INH | 4.63 |
| Total Depth In INH | 2 |
| Total Height In MMT | 104.78 mm |
| Total Width In MMT | 117.47 |
| Total Depth In MMT | 50.8 |
| Weight In LB | 0.68 |
| Mount Type | 1 Stud Mount |
| Housing Material | Zinc |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Number of Wires | 1 |
| Voltage (VLT) | 12 |
| Standards Met | I |
| Standards Met | S |
| Position | Universal |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Product Group | Turn Signal Light |
| Series | Signal-Stat |
