Description
2.5" Round P2/P3 Clearance Marker

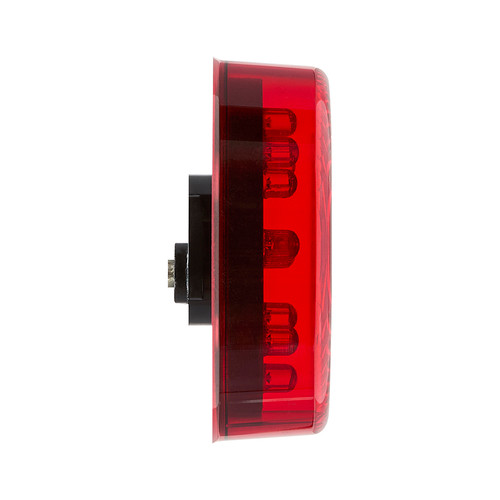

The M11300 Series is a 2.5” clearance marker lamp. With 13 LEDs, it is the original “High Count” and provides exceptional visibility. It can be grommet mounted or bracket mounted with the integrated twist-lock housing. It complies with P2 P3 DOT requirements and incorporates an industry standard PL-10 connector. This light features a polycarbonate lens & housing.
Features & Benefits:
- High Diode Count, 13 LED
- Industry Standard PL-10 Connector
- Plated Connectors
- Polycarbonate Lens & Housing
- Grommet or Bracket Mount
- M50100-B Grommet Sold Separately
- M50153CH Bracket Sold Separately
Specifications:
- LEDs 13
- Voltage 12.8VDC
- Amp Draw 100mA
- Dimensions 2.5" Diam. x 0.7” D
- Mounting 2.5” Grommet

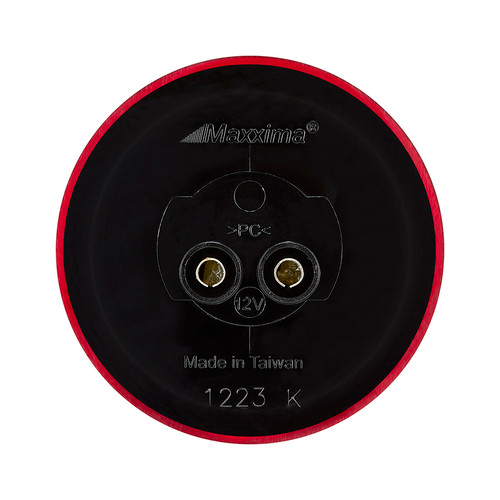

- Connector PL-10 Integrated
- Legal Heading P2 P3
- DOT/SAE J592 J2042
Warranty Information
Manufacturer's Waranty
