Description
3/4" Round P2/P3/PC2 Clearance Marker Red

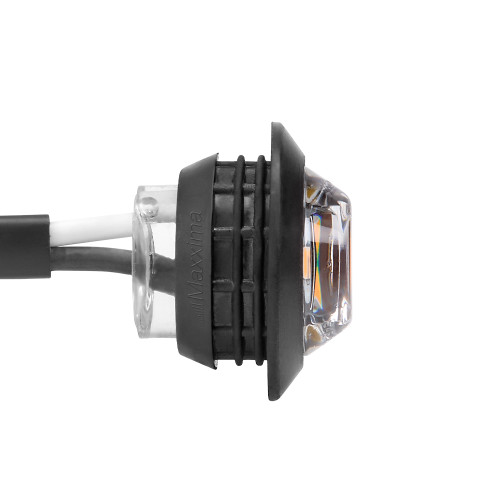

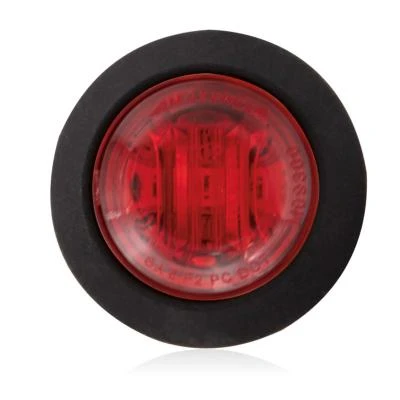

The M09300 series is a 3/4” grommet mounted clearance marker lamp. With 3 LEDs and a domed lens design, it provides a wide 180-degree horizontal beam for maximum visibility. It complies with P2 P3 and PC2 DOT requirements. It includes the mounting grommet which requires a 3/4" hole. This light features a polycarbonate lens & housing.
Features & Benefits:
- Includes Mounting Grommet
- Requires 3/4" Hole
- 180° Visibility - PC/PC2 Rated
- Also Available in Bulk Pack (M09300R-X)
- Optional Steel Bezel (M50112)
- Polycarbonate Lens & Housing
Specifications:
- LEDs 3
- Voltage 12.8VDC
- Amp Draw 60mA
- Dimensions 3/4" Diam. x 1.0” D
- Mounting Grommet, 3/4" Hole Cutout
- Connector 2 Jacketed Leads, .180 Bullets, 7"
- Legal Heading P2 P3 PC2
- DOT/SAE J592 J2042
Warranty Information
Manufacturer's Waranty
