Description
15 Series, LED, 1"x2", Rectangular, Red, 1 Diode, Silver, 2 Screw Bracket Mount, .180 Bullet
Ring Terminal, Identification Bar
Designed to fit applications requiring minimal space

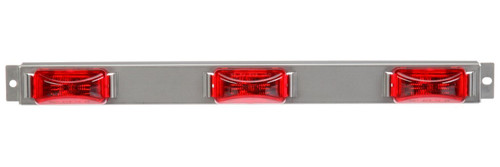

Features stainless steel bar with three LED Model 15 lamps on 6" centers
Electronics completely sealed in epoxy to resist corrosion and moisture
Sonically sealed lens and housing
| Lighting Technology | LED |
|---|---|
| Number of Diodes/Bulbs | 1 |
| Lens Shape | Rectangular |
| Lens Material | Polycarbonate |
| Lens Height_INH | 1.2 in |
| Lens Width_INH | 2.49 in |
| Common Size | 1"x2" |

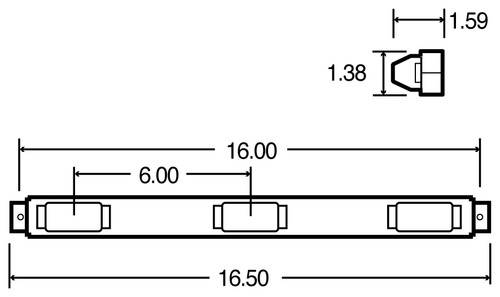

| Total Height In INH | 1.38 |
| Total Width In INH | 16.5 |
| Total Depth In INH | 1.59 |
| Total Height In MMT | 35.05 mm |
| Total Depth In MMT | 40.39 |
| Total Width In MMT | 419.1 |
| Weight In LB | 0.3 |
| Mount Type | 2 Screw Bracket Mount |
| Mount/Trim Color | Silver |
| Mount/Trim Material | Stainless Steel |
| Housing Material | Polycarbonate |
| Lamp Connection | PL-10 |
| Plug Side One | PL-10 |
| Plug Side Two | .180 Bullet |
| Plug Side Two | Ring Terminal |
| Number of Wires | 2 |
| Voltage (VLT) | 12 |
| Compliance Family | P2 |
| Standards Met | P2 |
| Sealed/Bulb Replaceable | Sealed |
| KIT | Kit (Yes/No) |
| Product Group | Marker & Clearance Lighting |
| Series | 15 Series |
