Description
15 Series, Incandescent, 1"x2", Rectangular, Yellow, 1 Diode, Black, 2 Screw Bracket Mount, Stripped End, Identification Bars
Features high impact polycarbonate ID bar designed to fit in limited mounting areas

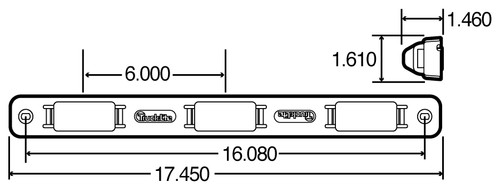

Lamps are mounted on 6 " centers
Direct replacement for Ford
Fits in most narrow header rails
Snap-lock tabs allow for easy installation
| Lighting Technology | Incandescent |
|---|---|
| Number of Diodes/Bulbs | 1 |
| Lens Shape | Rectangular |
| Lens Material | Polycarbonate |
| Lens Height_INH | 1.21 in |
| Lens Width_INH | 2.49 in |
| Common Size | 1"x2" |
| Total Height In INH | 1.61 |
| Total Width In INH | 17.45 |
| Total Depth In INH | 1.46 |
| Total Height In MMT | 40.89 mm |
| Total Depth In MMT | 37.08 |
| Total Width In MMT | 443.23 |
| Weight In LB | 0.55 |
| Mount Type | 2 Screw Bracket Mount |
| Mount/Trim Color | Black |
| Mount/Trim Material | Polycarbonate |
| Housing Material | Polycarbonate |
| Lamp Connection | PL-10 |
| Plug Side One | PL-10 |
| Plug Side Two | Stripped End |
| Number of Wires | 2 |
| Voltage (VLT) | 12 |
| Compliance Family | P2 |
| Sealed/Bulb Replaceable | Sealed |
| KIT | Kit (Yes/No) |
| Product Group | Marker & Clearance Lighting |
| Series | 15 Series |
