Description

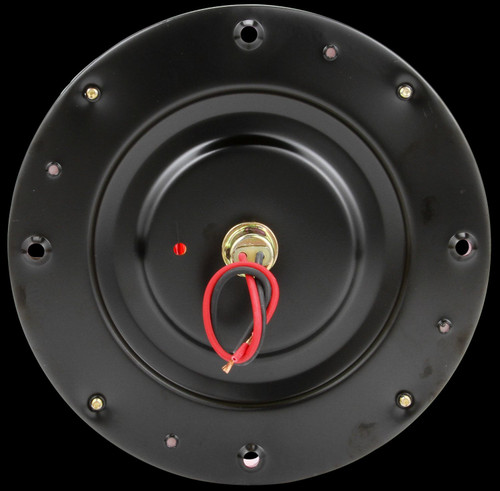

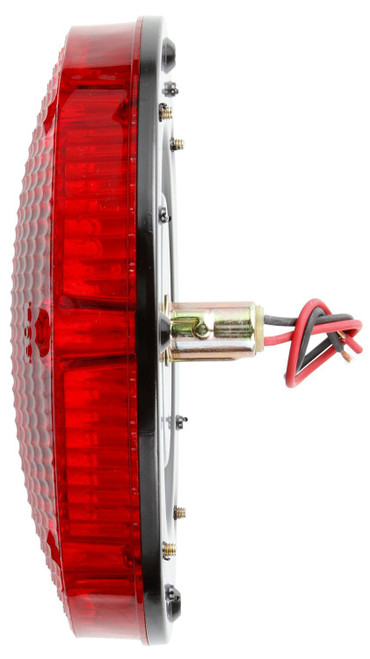

Truck-Lite, Incandescent, 7", Round, Red, 1 Diode, 4 Screw Mount, Stripped End, Stop/Turn/Tail Light
Popular lamp on buses and emergency vehicles
Requires a 1"
diameter hole, 1"
deep
Surface mounts with four bolts on a 625"
bolt circle
| Lighting Technology | Incandescent |
|---|---|
| Number of Diodes/Bulbs | 1 |
| Lens Color | Red |
| Lens Shape | Round |
| Lens Material | Acrylic |
| Lens Height_INH | 6.25 in |
| Lens Width_INH | 6.25 in |
| Common Size | 7" |
| Total Height In INH | 7.12 |
| Total Width In INH | 7.12 |
| Total Depth In INH | 2 |
| Total Height In MMT | 180.85 mm |
| Total Width In MMT | 180.85 |
| Total Depth In MMT | 50.8 |
| Weight In LB | 1.09 |
| Mount Type | 4 Screw Mount |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Number of Wires | 2 |
| Voltage (VLT) | 12 |
| Current Minor | 0.59 |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Product Group | Stop Lighting |
| Series | Truck-Lite |
