Description
Super 44, LED, 4", Round, Red, 6 Diode, Grommet Mount, Straight Female PL-3, Stop/Turn/Tail Light
Constructed with a polycarbonate housing and lens, providing 3x's the impact protection than others made with an acrylic lens
Designed with added epoxy encapusating the internal components to further protect against impact and vibration
Completely sealed lens and housing contruction leading to less lighting failures caused by corrosion due to water damage
Recognizable Truck-lite 6-Diode pentastar design for a modern look. Verisions with Imbedded advanced heated technology is self-regulating and heats consistently as temperature drops.
| Lighting Technology | LED |
|---|---|
| Number of Diodes/Bulbs | 6 |
| Lens Color | Red |
| Lens Shape | Round |
| Lens Material | Polycarbonate |

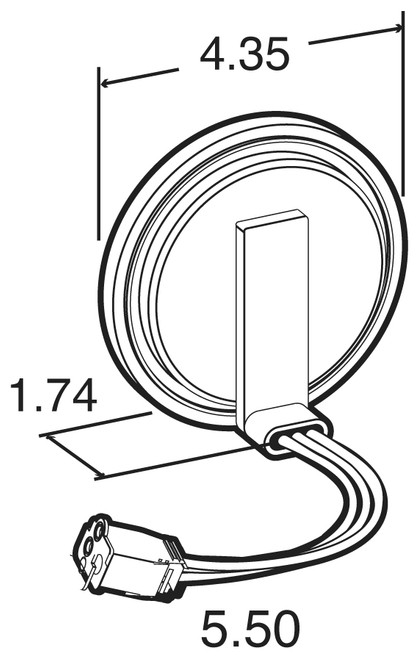

| Lens Height_INH | 4.35 in |
| Lens Width_INH | 4.35 in |
| Common Size | 4" |
| Total Height In INH | 4.35 |
| Total Width In INH | 4.35 |
| Total Depth In INH | 1.74 |
| Total Height In MMT | 110.49 mm |
| Total Width In MMT | 110.49 |
| Total Depth In MMT | 44.2 |
| Weight In LB | 22 |
| Mount Type | Grommet Mount |
| Housing Material | Polycarbonate |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Straight Female PL-3 |
| Number of Wires | 3 |
| Voltage (VLT) | 12 |
| Current Minor | 0.03 |
| Compliance Family | FMVSS 108 |
| Compliance Family | CMVSS 108 |
| Compliance Family | DOT |
| Compliance Family | SAE |
| Compliance Family | P2 |
| Compliance Family | I6 |
| Compliance Family | S2 |
| Compliance Family | T |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Stop Lighting |
| Series | Super 44 |
