Description

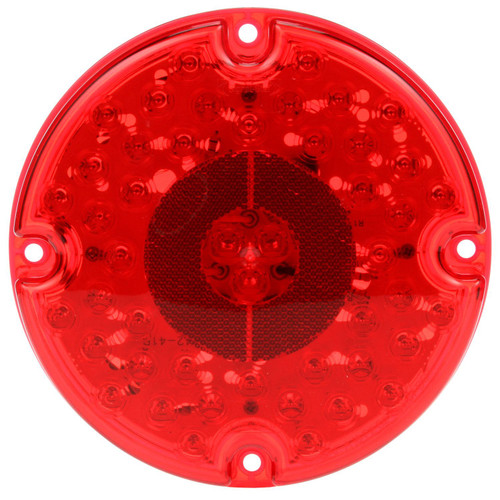

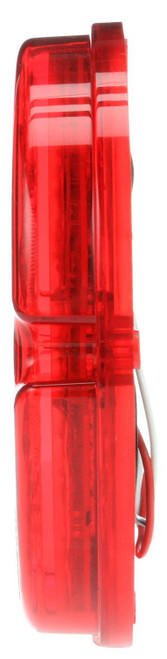

91 Series, LED, 7", Round, Red, 47 Diode, 4 Screw Mount, Stripped End, Stop/Turn/Tail Light
Features over-voltage and spike protection circuitry
Mounts in any 360 application
Popular in bus applications
| Lighting Technology | LED |
|---|---|
| Number of Diodes/Bulbs | 47 |
| Lens Color | Red |
| Lens Shape | Round |
| Lens Material | Acrylic |
| Lens Height_INH | 7 in |
| Lens Width_INH | 7 in |
| Common Size | 7" |
| Total Height In INH | 7 |
| Total Width In INH | 7 |
| Total Depth In INH | 1.3 |
| Total Height In MMT | 177.8 mm |
| Total Width In MMT | 177.8 |
| Total Depth In MMT | 33.02 |
| Weight In LB | 1.08 |
| Mount Type | 4 Screw Mount |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Number of Wires | 3 |
| Voltage (VLT) | 12 |
| Current Minor | 0.03 |
| Standards Met | A |
| Standards Met | I6 |
| Standards Met | P2 |
| Standards Met | S2 |
| Standards Met | T |
| Compliance Family | FMVSS 108 |
| Compliance Family | CMVSS 108 |
| Compliance Family | DOT |
| Compliance Family | SAE |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Stop Lighting |
| Series | 91 Series |
