Description

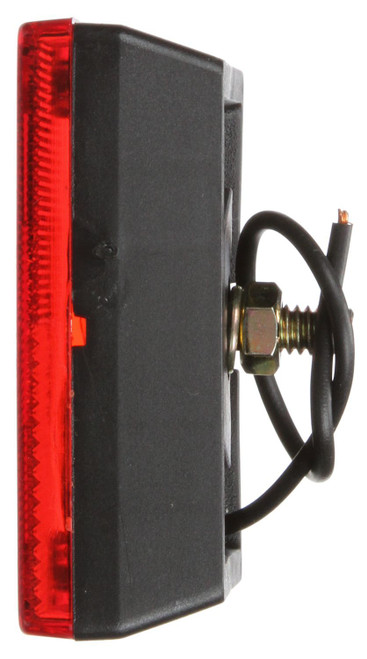

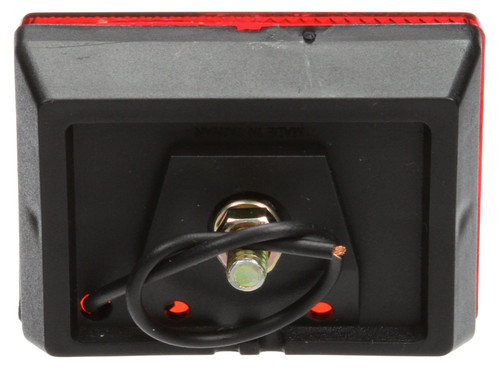

Signal-Stat, Incandescent, 2"x3", Rectangular, Red, 1 Diode, 1 Stud Mount, Stripped End, Marker & Clearance Light
Popular boat and utility trailer lamp
Shock/Mount for maximum bulb life
Serves as legal reflector when mounted between 15 and 60 inches from ground level on trailers less than 80"
wide
| Lighting Technology | Incandescent |
|---|---|
| Number of Diodes/Bulbs | 1 |
| Lens Shape | Rectangular |
| Lens Material | Acrylic |

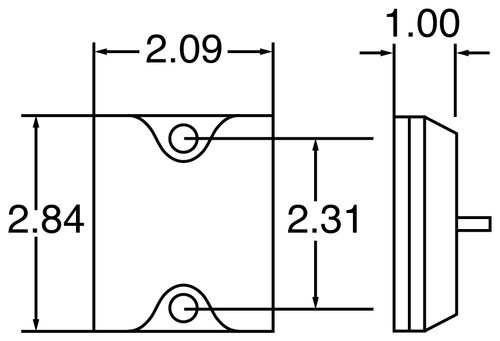

| Lens Height_INH | 2.09 in |
| Lens Width_INH | 2.84 in |
| Common Size | 2"x3" |
| Total Height In INH | 2.84 |
| Total Width In INH | 2.09 |
| Total Depth In INH | 1 |
| Total Height In MMT | 72.14 mm |
| Total Depth In MMT | 25.4 |
| Total Width In MMT | 53.09 |
| Weight In LB | 0.17 |
| Mount Type | 1 Stud Mount |
| Housing Material | Acrylic |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Number of Wires | 1 |
| Voltage (VLT) | 12 |
| Compliance Family | A |
| Compliance Family | P2 |
| Sealed/Bulb Replaceable | Bulb Replaceable |
| Product Group | Marker & Clearance Lighting |
| Series | Signal-Stat |
