Description

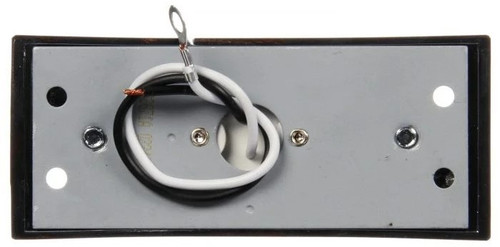

Signal-Stat, LED, 2"x3", Rectangular, Yellow, 4 Diode, Chrome, Rail Mount, Stripped End
Ring Terminal, P2
PC, Marker & Clearance Light
Narrow rail deflector mount
6/4 diode pattern
Snap-in lens for easy replacement
SAE PC-rated for combination clearance/marker application

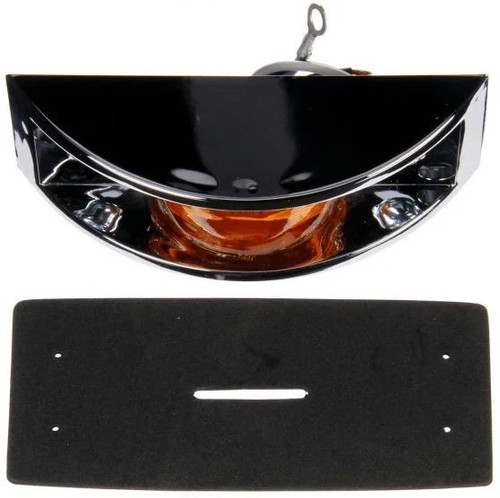

Mounting pad included
Unique LED array displays full pattern output
| Lighting Technology | LED |
|---|---|
| Number of Diodes/Bulbs | 4 |
| Lens Shape | Rectangular |
| Lens Material | Acrylic |
| Common Size | 2"x3" |
| Total Height In INH | 2.05 |
| Total Width In INH | 4.79 |
| Total Depth In INH | 1.37 |
| Total Height In MMT | 52.07 mm |
| Total Depth In MMT | 34.8 |
| Total Width In MMT | 121.67 |
| Weight In LB | 0.31 |
| Mount Type | Rail Mount |
| Mount/Trim Color | Chrome |
| Mount/Trim Material | ABS |
| Housing Material | Steel |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Stripped End |
| Plug Side Two | Ring Terminal |
| Number of Wires | 2 |
| Voltage (VLT) | 12 |
| Standards Met | P2 |
| Standards Met | PC |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Marker & Clearance Lighting |
| Series | Signal-Stat |
