Description

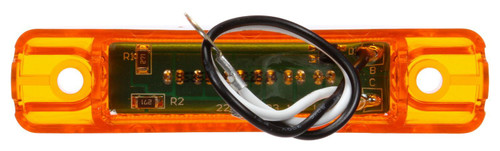

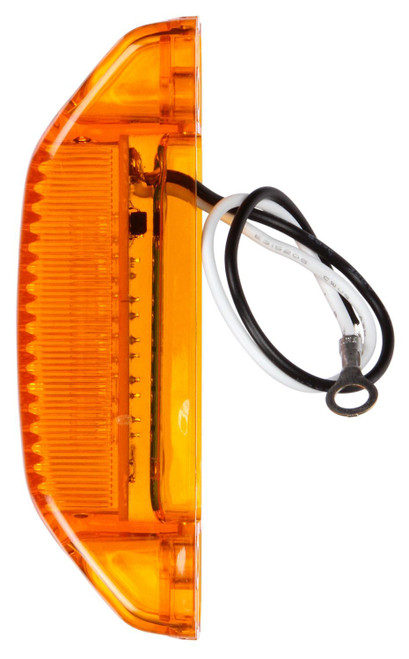

Signal-Stat, LED, 1"x4", Rectangular, Yellow, 2 Diode, Yellow, 2 Screw Mount, Ring Terminal
Stripped End, P2
PC, Marker & Clearance Light
Full pattern light output
Popular on show truck applications
Designed for areas with limited space
Not suitable for PC requirements
Hardwired design eliminates pin corrosion
| Lighting Technology | LED |
|---|---|
| Number of Diodes/Bulbs | 2 |
| Lens Shape | Rectangular |
| Lens Material | Polycarbonate |
| Lens Height_INH | 0.88 in |
| Lens Width_INH | 4 in |
| Common Size | 1"x4" |
| Total Height In INH | 0.88 |
| Total Width In INH | 4 |
| Total Depth In INH | 1.18 |
| Total Height In MMT | 22.35 mm |
| Total Depth In MMT | 29.97 |
| Total Width In MMT | 101.6 |
| Weight In LB | 0.15 |
| Mount Type | 2 Screw Mount |
| Mount/Trim Color | Yellow |
| Housing Material | Polycarbonate |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | Ring Terminal |
| Plug Side Two | Stripped End |
| Number of Wires | 2 |
| Voltage (VLT) | 12 |
| Standards Met | P2 |
| Standards Met | PC |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Marker & Clearance Lighting |
| Series | Signal-Stat |
