Description

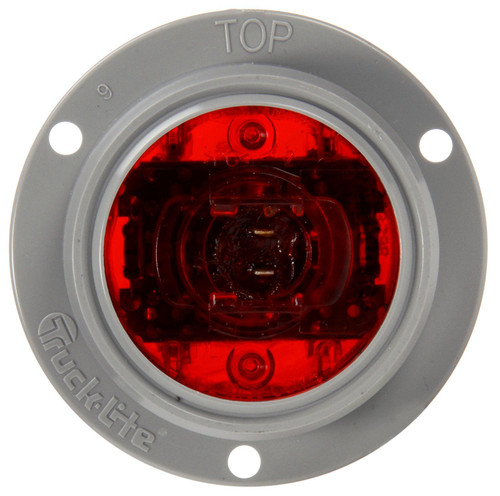

30 Series, LED, 2", Round, Red, 8 Diode, Gray, Flange Mount, P2
P3
PC, Marker & Clearance Light
SAE PC Rated, allowing combined marker & clearance applications
High-Profile design increases light output and improves visibility of vehicle. Most Advanced and cost effective 2" Marker & Clearance light on the market.
Designed with LED lighting technology providing optimal light output and sealed design further protecting against damage from shock and vibration.
| Lighting Technology | LED |
|---|---|
| Number of Diodes/Bulbs | 8 |
| Lens Shape | Round |
| Lens Material | Polycarbonate |
| Lens Height_INH | 2.24 in |
| Lens Width_INH | 2.24 in |
| Common Size | 2" |
| Total Height In INH | 2.92 |
| Total Width In INH | 2.92 |
| Total Depth In INH | 1.7 |
| Total Height In MMT | 74.17 mm |
| Total Depth In MMT | 43.18 |
| Total Width In MMT | 74.17 |
| Weight In LB | 0.4 |
| Mount Type | Flange Mount |
| Mount/Trim Color | Gray |
| Mount/Trim Material | Polycarbonate |
| Housing Material | Polycarbonate |
| Lamp Connection | Fit 'N Forget M/C |
| Plug Side One | Fit 'N Forget M/C |
| Voltage (VLT) | 12 |
| Standards Met | P2 |
| Standards Met | P3 |
| Standards Met | PC |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Marker & Clearance Lighting |
| Series | 30 Series |
