Description

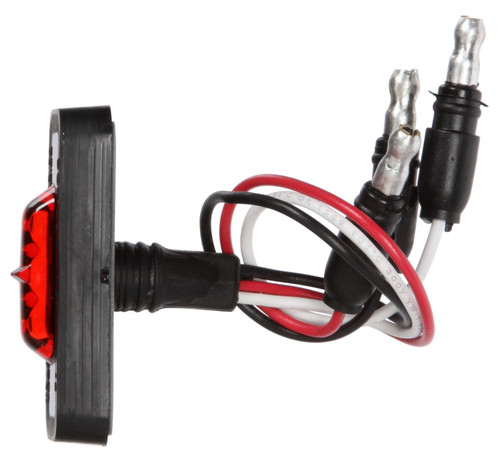

Our 36 Series Dual Function Flex-Lite is designed with a slim profile, an adhesive mounting for quick and easy installation, and different light output when brake or turnsignal is applied, making this out most advanced and convenient marker & clearance light available.
Lamps operate in minor and major output levels
Major function activated by the brake function or turn signal
Yellow Major function is 3 times brighter than minor function
Red Major function is 7 times brighter than minor function
Designed with heavy duty adhesive backing
Electronics are completely sealed in epoxy to resist damage caused by moisture or corrosion.
| Lighting Technology | LED |
|---|---|
| Number of Diodes/Bulbs | 3 |
| Lens Shape | Rectangular |
| Lens Material | Polycarbonate |
| Lens Height_INH | 0.55 in |
| Lens Width_INH | 1.89 in |
| Common Size | 1"x2" |
| Total Height In INH | 0.76 |
| Total Width In INH | 1.89 |
| Total Depth In INH | 6 |
| Total Height In MMT | 13.97 mm |
| Total Depth In MMT | 152.4 |
| Total Width In MMT | 48.01 |
| Weight In LB | 0.03 |
| Mount Type | Adhesive Mount |
| Mount/Trim Color | Black |
| Mount/Trim Material | PVC |
| Housing Material | Polycarbonate |
| Lamp Connection | Hardwired |
| Plug Side One | Hardwired |
| Plug Side Two | .180 Bullet |
| Number of Wires | 3 |
| Voltage (VLT) | 12 |
| Current Minor | 0.01 |
| Standards Met | P2 |
| Sealed/Bulb Replaceable | Sealed |
| Product Group | Marker & Clearance Lighting |
| Series | 36 Series |
